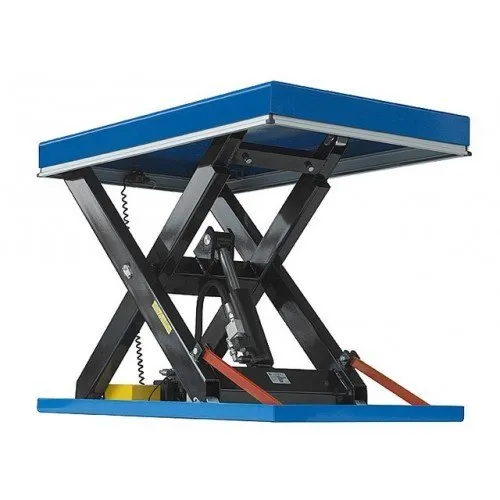

Hydraulic Single Scissor Lift Table

Power Source - Hydraulic

Capacity - 1000-5000 Kg

Usage/Application - Warehouses

Material - Mild Steel

Brand - Competent

Surface Finishing - Painted

Platform Size - 600x1200 sq mm

The hydraulic single scissor lift table is a versatile and efficient piece of equipment used in various industries. It is designed to lift heavy loads vertically and can be easily adjusted to different heights. The table is equipped with hydraulic cylinders that provide smooth and controlled lifting motion. This ensures the safety of the workers and prevents any accidents or injuries. The single scissor design allows for easy maneuverability and can be used in tight spaces. The lift table is commonly used in warehouses, factories, and workshops for loading and unloading goods or for assembly and maintenance tasks. Its sturdy construction and reliable performance make it an essential tool for efficient and convenient material handling operations.

Features:

• Parachute valve in each cylinder stops the descent of the platform in case of rupture of hydraulic hose.

• Descent speed independent of the load and adjustable.

• Perimeter aluminum safety frame under the edge of the platform immediately stop the descent in case of obstacle.

• Safety crutches for technical interventions.

• Anti-shear contactor.

• Constant flow valve.

• Self-lubricating rollers and rings.

• 400 Volt three-phase motor supply.

• Control box 24 Volts [rising / falling / emergency stop type punch] with spiral cable.
